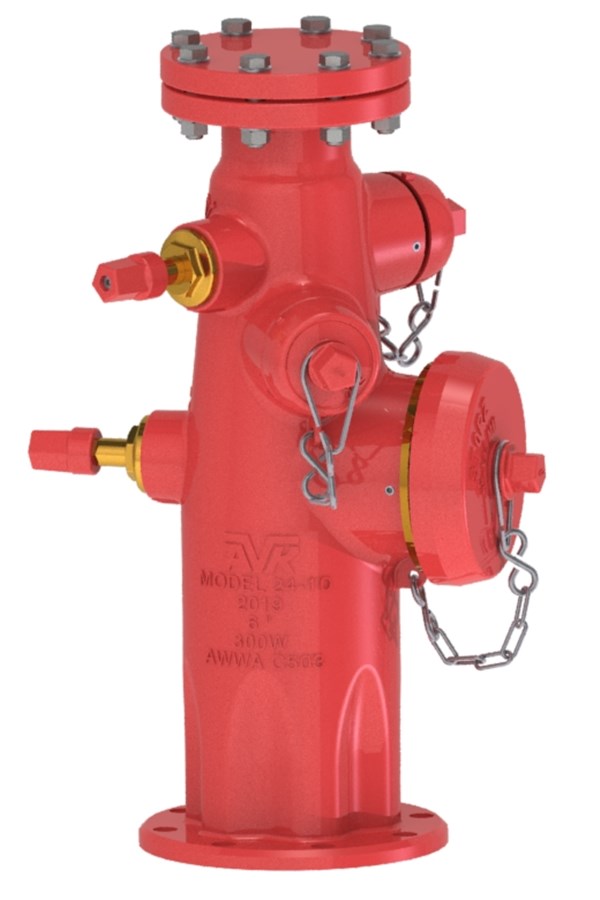

AVK WET BARREL FIRE HYDRANT, 4" ANSI MONITOR FLANGE, CL. 150 FLANGE, UL/FM

CI-cap, bronze stem/nut/nozzles, SS-304 thrust nut, NBR, 1½" op.nut, 2x2½" NST hose- 1x4” BS336 pumper, red

PT AVK Fusion Indonesia

Taman Tekno Blok F1/F - CDE, BSD, Setu, Kec. Serpong. Tangerang Selatan. Banten 15314, Indonesia.

Hydrant for fire water or other neutral liquids to max. 160°F/70°C

The AVK Series 24 wet barrel fire hydrant meets or exceeds the AWWA C503 Standards.

The nozzles section comes in high strength ductile iron or cast 304 stainless steel. Both styles are offered in 2-way and 3-way configuration.

Certified to NSF 61 and NSF 372 and meeting all requirements of the Safe Drinking Water Act. UL listed, FM approved

fire
fire
Varian 24/10-003
Koneksi: Flanged
Material: Ductile iron
DN: DN150
PN: PN 16
Arah penutupan: Clockwise to Close

fitur-fitur

  • 4" monitor flange on the top
  • The operating nut is a ductile iron, pentagon stem cap, covering and protecting the stem and making sure only special tools can operate the hydrant
  • 2x2½" NST hose- 1x4" BS336 pumper outlets
  • UL listed, FM approved
  • 300 psi pressure rating
  • Nozzles, stem and stem nut in high-strength, low-lead, low-zinc bronze for high strength and high corrosion and de-zincification resistance
  • Nozzle section in ductile iron, A536
  • Easily replaceable nozzles installed with a bayonet assembly
  • Inner coating in fusion bonded epoxy, topcoat in UV-resistant polyester

Unduhan

Datasheet
Certificate(s)

Referensi no. dan dimensi:

Geser untuk info lebih lanjut
Reference no. DN
mm		 H1
mm		 H2
mm		 H3
mm		 H4
mm		 Theoretical
weight/kg
24-150-10-00002901 150 710 522 476 355 71
pertanyaan
Geser untuk info lebih lanjut

Komponen-komponen

1. Body Ductile iron A536 65-45-12
2. Stem nut Bronze C92200
3. Lock screw Stainless steel A4
4. O-ring NBR rubber
5. Bolt Stainless steel A2
6. Stem cap Cast iron
7. Stem seal O-ring NBR rubber
8. Stem Alu/Ni-bronze C63020
9. Chain Steel, galvanized
10. O-ring NBR rubber
11. O-ring NBR rubber
12. Outlet nozzle Cu/Ni alloy, C99500
13. O-ring NBR rubber
14. Cap Cast iron
15. Disc seal NBR rubber
16. Disc core Brass C86500
17. Lock screw Stainless steel A4
18. O-ring NBR rubber
19. Thrust collar Stainless steel AISI 304
20. Thrust nut Stainless steel AISI 304
21. Nut Stainless steel A4
22. Washer Stainless steel A4
23. Blind flange Ductile Iron
24. Bolt Stainless steel A4

Tes / Sertifikasi

  • Hydraulic tests according to FM and UL Standards
  • FM Approved, UL listed

Standar

  • AWWA C503
